outdoor P4 P5 P6 P8 P10 led display screen led HD video wall for advertising water-proof fixed outdoor led

Name: outdoor P4 P5 P6 P8 P10 led display screen led HD video wall for advertising waterproof fixed outdoor led
Brand: JuCaiYuan
Price: 1 USD

China outdoor P4 P5 P6 P8 P10 led display screen led HD video wall for advertising water-proof fixed outdoor led wholesale

Brand Name : JuCaiYuan

Model Number : p5 p6 p8 P10

Certification : CE/ROHS/FCC

Place of Origin : Shenzhen,China

MOQ : 1 Square meter

Price : negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000sqm per month

Delivery Time : 3-25 working days after finished the payment

Packaging Details : Strong Carton Box, Standard Wood Case, Flight Case etc

product : Transparent P10 mm LED Display

Brightness : Over 5000nits

Warranty : 2 Years

Application : Indoor

Technology : Frontage-lighting

Screen Dimension : Customized

Material : Acrylic Frame Rental Led Wall

High Light : transparent led curtain display, glass wall led display

Contact Now

Overview

Quick Details

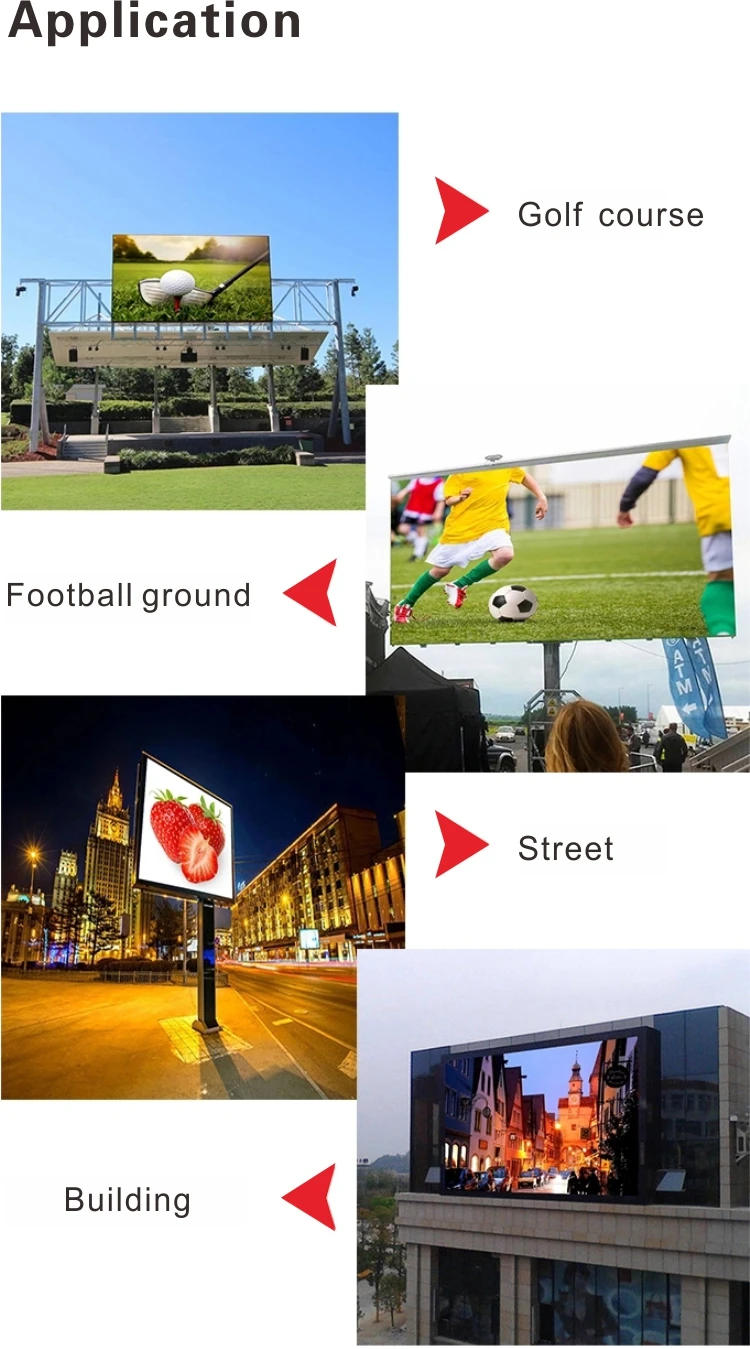

Application:: Outdoor advertising, Outdoor Advertising

Color:: full color

Panel Size:: customized

Pixel Pitch:: 8mm 10mm

Place of Origin:: China

Model Number:: SLP8

Brand Name:: JUCAIYUAN

Product name:: P8 Outdoor Led Display

Display Function:: Video

Screen Dimension:: Custom Made

Certificate:: CE ROHS FCC

Module size:: 160mm*320mm

Warranty:: 2 Years

Brightness:: 6000cd/sqm

Refresh rate:: 1920 Hz

Cabinet size:: 960x960

Packaging & Delivery

Packaging Details: 1.Carton case
2.Wooden case
3.Flight case
4.Customized

Picture Example:

Lead Time:

Quantity(Pieces)	1 - 100	>100
Est. Time(days)	5	To be negotiated

outdoor P4 P5 P6 P8 P10 led display screen led HD video wall for advertising water-proof fixed outdoor led

Technical Parameters
LED Configuration	SMD3535	SMD3535
Pixel Pitch(mm)	8	10
Module Resolution(W×H)	40*20	32*16
Module weight(kg)	0.53	0.6
Modules per Cabinet (W×H)	3*6	3*6
Cabinet Resolution(W×H)	120*120	96*96
Cabinet Dimension(mm)	960(W)×960(H)×93(D)	960(W)×960(H)×93(D)
Cabinet Weight(kg)	30	32
Pixel Density(dots/m2)	15625	10000
Brightness(nits)	≥4500-6000	≥5500-6500
View Angle(H/V°)	170/120	170/120
Brightness/Color Uniformity	≥97%	≥97%
Max(Average) Power Consumption(W/m2)	800(280)	850(240)
Power Supply	AC110/220V,Frequency 47-63(Hz)	AC110/220V,Frequency 47-63(Hz)
Refresh Frequency(Hz)	50&60	50&60
Drive Mode	Constant Current Drive, 5Scan	Constant Current Drive,4 Scan
Gray Level	16384	16384
Refresh rate(Hz)	≥1920	≥1920
Color Processing Digit	12-16bit	12-16bit
Functions	2K HD,4K Ultra HD Videos	2K HD,4K Ultra HD Videos
Lifespan(hrs)	100,000H	100,000H
Operating Temperature/Humidity(℃/RH)	'-20 – 60 / 10%-95%RH	'-20 – 60 / 10%-95%RH

Best Selling

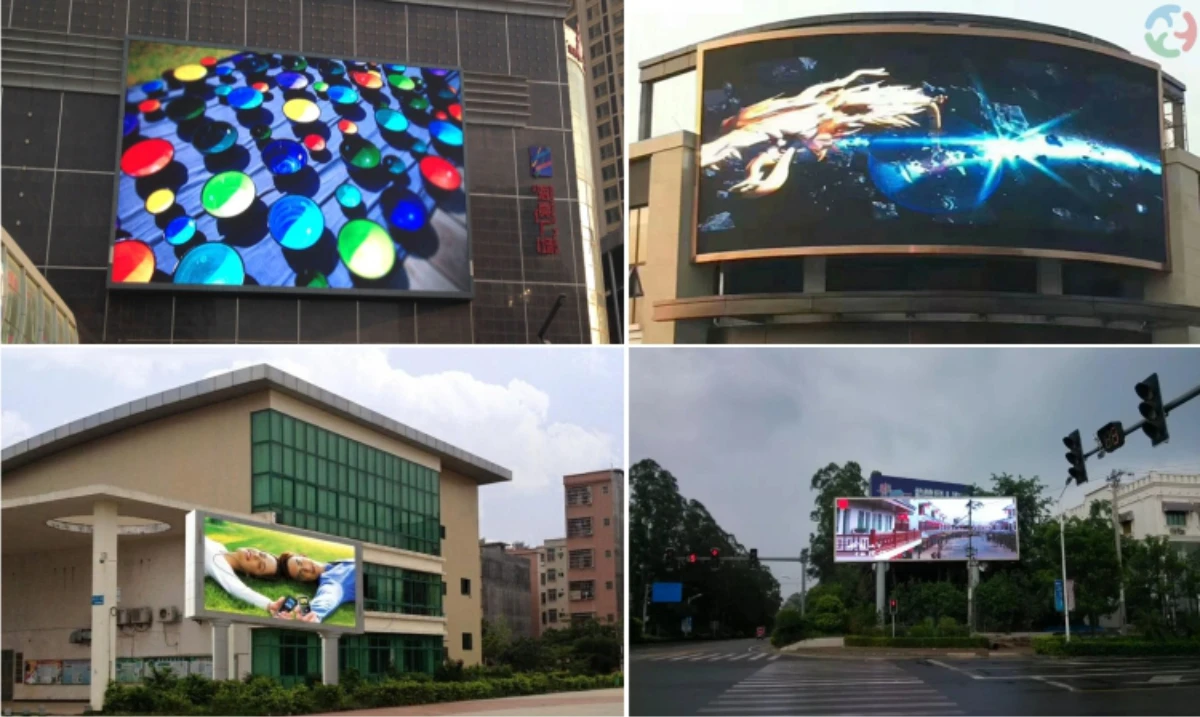

Outdoor LED display installation types:

Product packaging

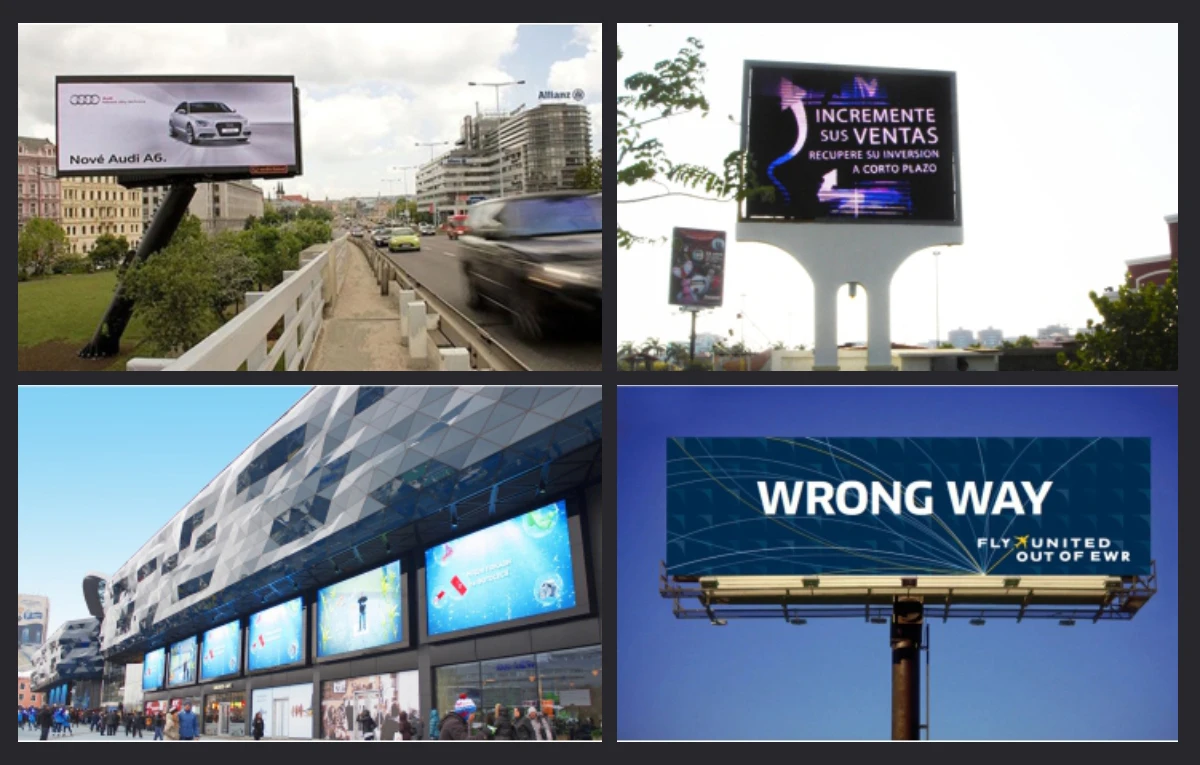

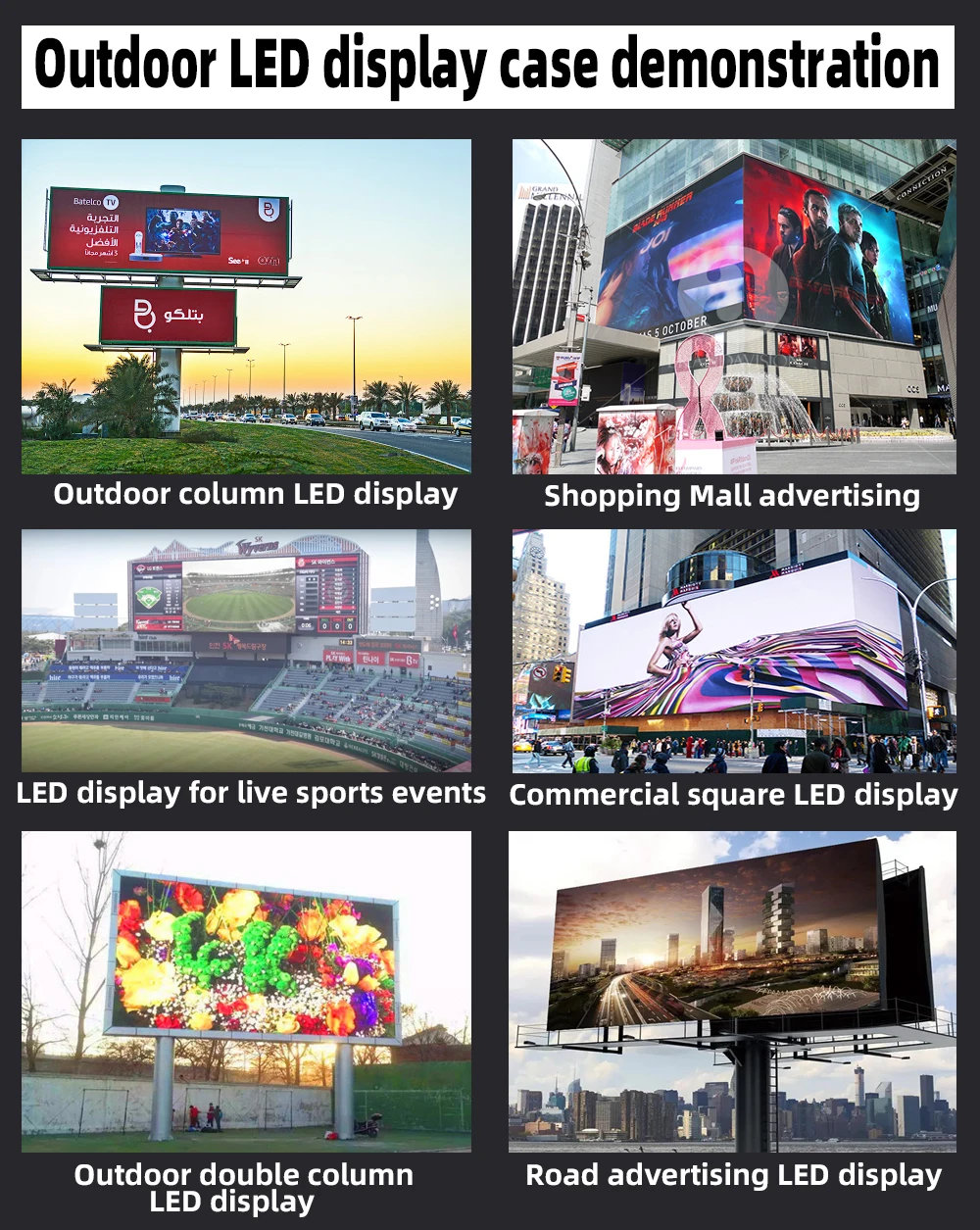

Product case
