Novastar VX4S LED Display Video Processor With SDI For LED Screen

Name: Novastar VX4S LED Display Video Processor With SDI For LED Screen
Brand: JuCaiYuan
Price: 1 USD

China Novastar VX4S LED Display Video Processor With SDI For LED Screen wholesale

Brand Name : JuCaiYuan

Model Number : P6 P8 P10

Certification : CE/ROHS/FCC

Place of Origin : Shenzhen,China

MOQ : 1 Square meter

Price : negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000sqm per month

Delivery Time : 3-25 working days after finished the payment

Packaging Details : Strong Carton Box, Standard Wood Case, Flight Case etc

product : Transparent P3.91 mm LED Display

Brightness : Over 5000nits

Warranty : 2 Years

Application : Indoor

Technology : Frontage-lighting

Screen Dimension : Customized

Material : Acrylic Frame Rental Led Wall

High Light : transparent led curtain display, glass wall led display

Contact Now

Products Description

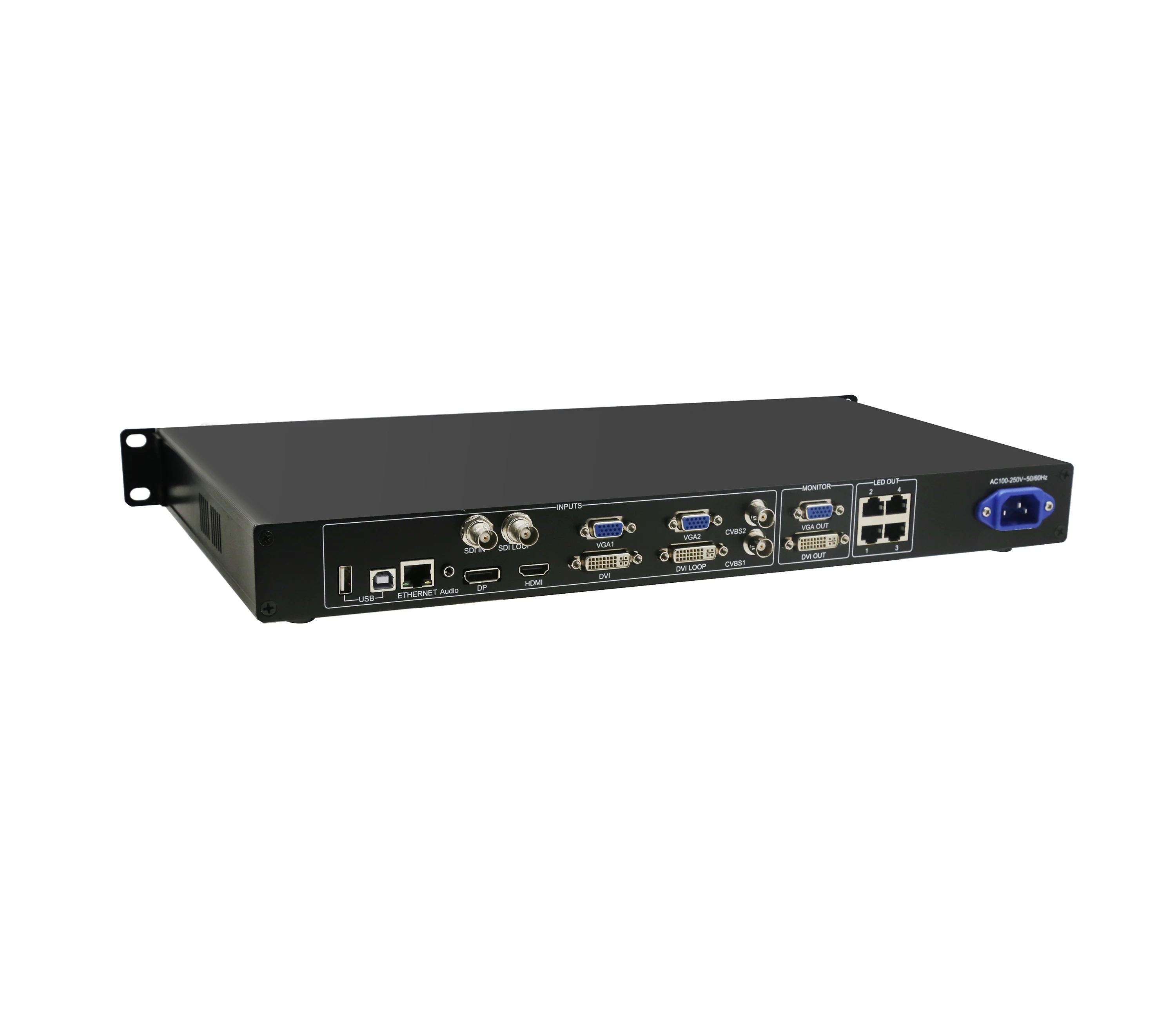

Novastar VX4S LED Display Video Processor With SDI For LED Screen

The VX4S is a professional LED display controller. Besides the function of display control, it also features in powerful front end processing, so an external scalar is no longer needed. With professional interfaces integrated, VX4S with excellent image quality and flexible image control greatly meet the needs of the broadcast industry, Its friendly in user-interface. so that the display to work has never been as easier and more enjoyable as with VX4S.

Features

 The inputs of the VX4S include CVBS×2, VGA×2, DVI×1, HDMI×1 , DP×1 and SDI× They support input resolution up to 1920×1200@60Hz; the input images of VX4S can be zoomed point-to-point according to the screen resolution;
  Provide seamless high-speed switch and fade-in/ fade-out effect so as to strengthen and display picture demonstration of professional quality;
  The location and size of PIP can both be adjusted, which can be controlled at will;
Adopt the Nova G4 engine; the screen is stable and flicker free without scanning lines; the images are exquisite and have a good sense of depth;
  Can implement white balance calibration and color gamut mapping based on different features of LEDs used by screens to ensure reproduction of true colors;
  HDMI/external audio input;
  10bit/8bit HD video source;
  The loading capacity: 2.3 million pixel;
  Support multiple controller montage for loading huge screen;
  Support Nova’s new-generation point-by-point correction technology; the correction is fast and efficient;
  Computer software for system configuration is not necessary. The system can be configured using one knob and one button. All can be done just by fingers. That’s what we called Touch Track!
  Adopt an innovative architecture to implement smart configuration; the screen debugging can be completed within 30 seconds; greatly shorten the preparation time on the stage;
  A intuitive LCD display interface and clear button light hint simplify the control of the system.


Input Index
Port	Number	Resolution Specification
CVBS	2	PAL/NTSC
VGA	2	VESA Standard, support max. 1920×1200@60Hz input
DVI	1	VESA Standard (support 1080i input), support HDCP
SDI	1	480i,576i,720P,1080i/P
HDMI	1	EIA/CEA-861 standard, in accordance with HDMI-1.3 standard, support HDCP
DP	1	VESA Standard
Output Index
Port	Number	Resolution Specification
DVI LOOP	1	Consistent with DVI input
VGA	1	Monitoring output connector
DVI	1	Up to 1920×1200@60Hz output resolution
SDI LOOP	1	Consistent with SDI input
LED OUT	4	4 Gigabit Ethernet outputs. Only Ethernet port 1 supports audio output. When the multifunction card is connected for audio decoding, the multifunction card must be connected to the Ethernet port 1.
Specification of complete machine
Input Power	AC100～240VAC,50/60Hz
Overall Power Consumption	25W
Operating Temperature	-20~60℃
Size	482.6×251.5×45(mm)
Weight	2.55 Kg
