MCTRL300 LED Display Screen Sending Box Controller with card inbuilt

Name: MCTRL300 LED Display Screen Sending Box Controller with card inbuilt
Brand: JuCaiYuan
Price: 1 USD

China MCTRL300 LED Display Screen Sending Box Controller with card inbuilt wholesale

Brand Name : JuCaiYuan

Model Number : P6 P8 P10

Certification : CE/ROHS/FCC

Place of Origin : Shenzhen,China

MOQ : 1 Square meter

Price : negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000sqm per month

Delivery Time : 3-25 working days after finished the payment

Packaging Details : Strong Carton Box, Standard Wood Case, Flight Case etc

product : Transparent P3.91 mm LED Display

Brightness : Over 5000nits

Warranty : 2 Years

Application : Indoor

Technology : Frontage-lighting

Screen Dimension : Customized

Material : Acrylic Frame Rental Led Wall

High Light : transparent led curtain display, glass wall led display

Contact Now

Products Description

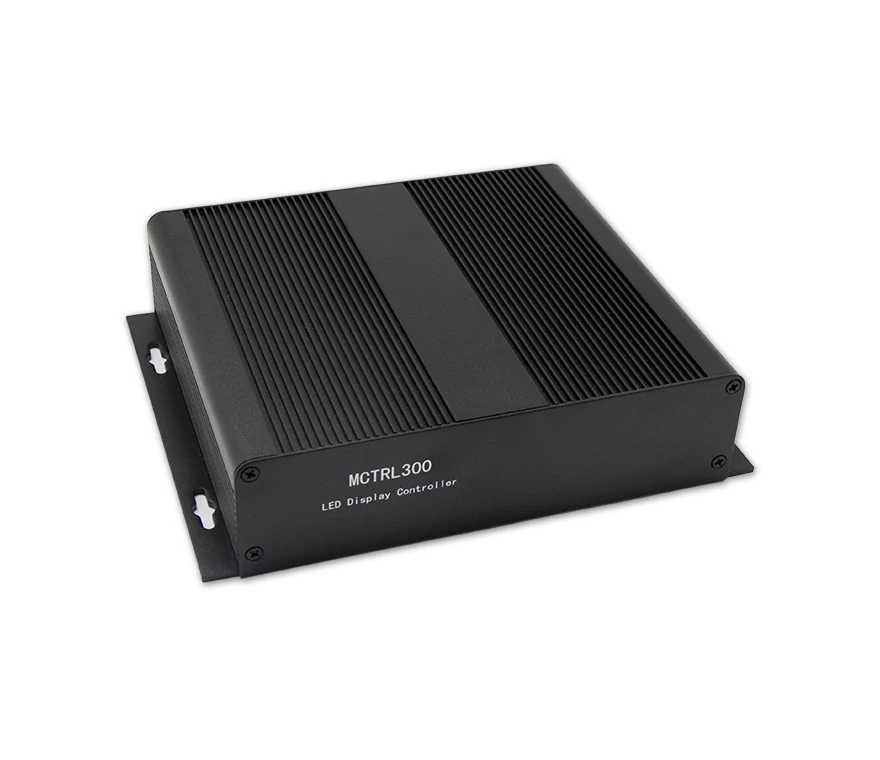

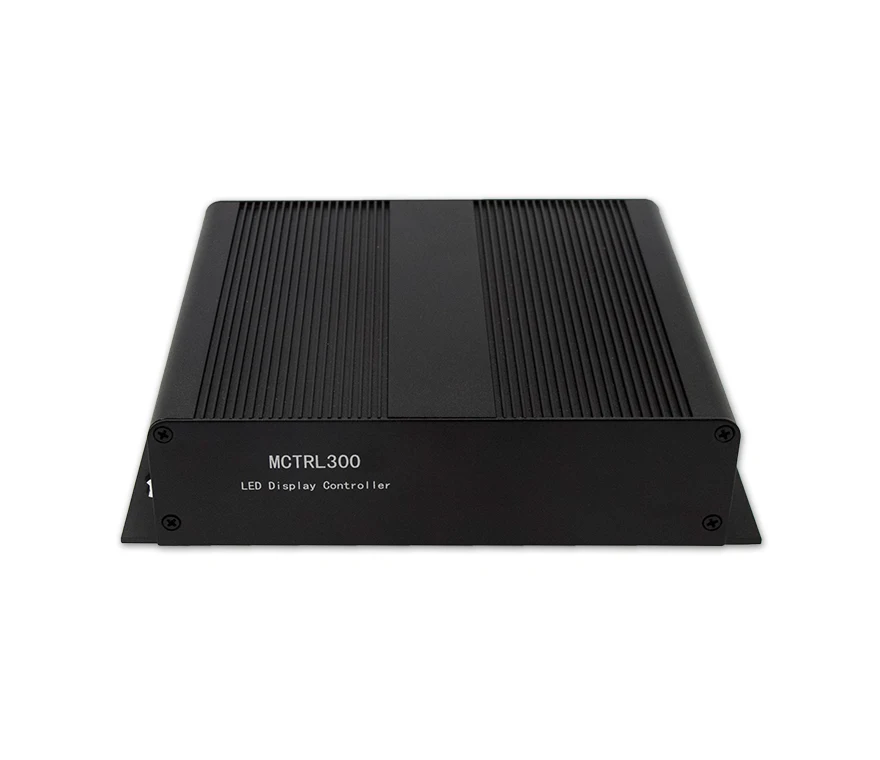

MCTRL300 LED Display Screen Sending Box Controller with card inbuilt


The MCTRL300, one of the M3 series independent controllers of NovaStar, supports video and audio input. After decoding and data processing, videos and audios can be sent to the screen via Ethernet port. A single controller supports resolutions up to 2048×668@60Hz. It communicates with the computer via USB port, which is convenient to use. The MCTRL300 can be mainly used for the rental and fixed fields, such as live events, security monitoring centers and various sports centers

Features

  1 × DVI input
 1 × audio input
 1 × type-B USB control port
 UART control ports to cascade devices for uniform control
 Dual Ethernet outputs
 Supports the new generation of NovaStar calibration technology, which is fast and efficient.
 1 × light sensor connector
 Supports resolutions up to 2048×668@60Hz and downward compatibility.
 Supports a variety of video formats


Specifications

Connector	Connector Name	Description
Control	UART IN/OUT	Input and output ports for cascading devices
	USB	Type-B USB control port for connecting to PC
Power	AC 100V-240V~50/60Hz
Indicators
RUN	Device operating indicator. Working status:
	Flashing slowly: Video input unavailable
	Flashing normally: Video input available
	Flashing rapidly: The screen is displaying startup image.
	Breathing: Ethernet port redundancy has taken effect.
STATUS	Device power indicator. Working status:
	On: The power supply is normal.
	Off: The power is not supplied, or the power supply is abnormal.
