Show Stage P6.25 Interactive Led Floor Support Video Full Color Display Screen
Description
1.Scree keeps ranking top 10 in recent 5 years in Shenzhen LED industry.
2. The product pixel pitch series ranges from P1.25 to P16, screen series including indoor&outdoor fix install display, stage rental screen, poster screen, lamp-post screen, football screen, dual-side advertising screen, pharmacy LED sign, flexible screen, dance floor screen,scrolling screen, etc.
4. We own 2 plants with production area 38,000 square meters, 100 SMT machines keep running day and night.
5. Number of employees is stable at around 250, and the age is between 20-50.
6. Great production capacity. Monthly 10,000 square meters LED displays, weekly30,000 pcs LED modules.
7. Short lead time. Module delievery time 5-7 days, LED display delievery time 10-20 days.
8. We have passed CCC/CE/FCC/BIS/RoHS/ISO9001 certification. As well, our products have won prizes and praises from our clients domestic and overseas.
Application:
Widely used in stage fixed installation,singing and dancing event evenings,various conferences,exhibitions,stadiums,theaters,auditoriums,lecture halls,multi-purpose halls,conference rooms,interpretation halls,di bars,night clubs,high-end entertainment discos,TV station Spring Festival Evening,auto show,important cultural events in various provinces and cities.
| 1 | Screen Area | 6*5meters |
| 2 | Cabinet Quantity | 120 cabinets |
| 3 | Brightness | ≥1800cd/㎡ |
| 4 | Brightness(Max./Min.) | 1.2:1 |
| 5 | Driving Method | 1/6 Scan |
| 6 | View Angle | Horizontal140° Vertical 140° |
| 7 | Pixel Pitch | 6.25mm |
| 9 | Fresh requency | >2000 HZ |
| 10 | Frame Frequency | 50 -- 60Hz |
| 11 | Input Voltage | AC220V/50Hz or AC110V/60Hz |
| 12 | Defects Rate | ≤0.00001 |
| 13 | Power Consumption | Max: 680W/㎡ Average: 280W/㎡ |
| 14 | MTBF | >10,000 hours |
| 15 | Life span | ≥100,000 hours |
| 16 | Module Display Brightness Uniformity | <3% |
| 17 | Earth Leakage Current | <3mA |
| 18 | Protective Grade | IP40 |
| 19 | Temperature-operating | ﹣25℃～60℃ |
| 20 | Humidity-operating | 10%～95% |
| 21 | Brightness control | 0～256 adjustable |
| 22 | Controlling system | Novastar |
| 23 | Power supply | G-energy/Meanwell |
Product Tags:
|
|

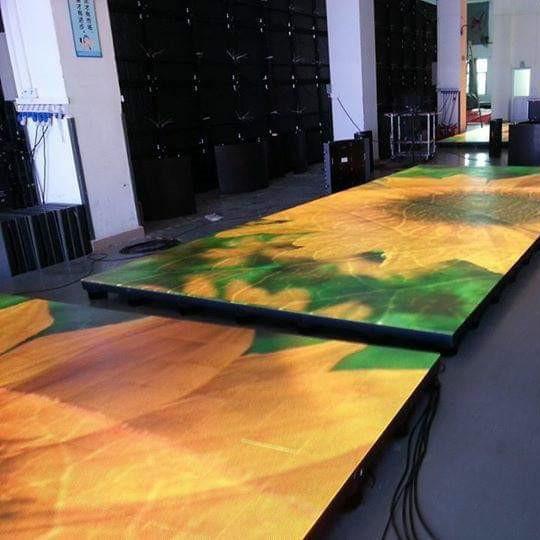

P6.25mm Interactive LED Floor Tile Images
|
